Social Safe Zones

social-safe-zones.tsx
import React, {forwardRef, useId, useImperativeHandle, useRef} from 'react';
import {
	Img,
	Interactive,
	Sequence,
	type InteractiveBaseProps,
	type InteractiveTransformProps,
	type InteractivitySchema,
	type SequenceControls,
	useVideoConfig,
} from 'remotion';

type SocialSafeZonesProps = InteractiveBaseProps &
	InteractiveTransformProps & {
		readonly overlayOpacity?: number;
		readonly platform?: 'instagram' | 'tiktok';
		readonly showInterface?: boolean;
	};

const socialSafeZonesSchema = {
	...Interactive.baseSchema,
	platform: {
		type: 'enum',
		default: 'instagram',
		description: 'Platform',
		keyframable: false,
		variants: {
			instagram: {},
			tiktok: {},
		},
	},
	showInterface: {
		type: 'boolean',
		default: true,
		description: 'Show interface reference',
		keyframable: false,
	},
	overlayOpacity: {
		type: 'number',
		min: 0,
		max: 1,
		step: 0.05,
		default: 0.45,
		description: 'Unsafe area opacity',
		hiddenFromList: false,
		keyframable: false,
	},
} as const satisfies InteractivitySchema;

const SocialSafeZonesInner = forwardRef<
	HTMLDivElement,
	SocialSafeZonesProps & {
		readonly controls: SequenceControls | undefined;
	}
>(
	(
		{
			controls,
			name,
			overlayOpacity = 0.45,
			platform = 'instagram',
			showInterface = true,
			style,
			...sequenceProps
		},
		ref,
	) => {
		const outlineRef = useRef<HTMLDivElement>(null);
		const {height, width} = useVideoConfig();
		const maskId = `social-safe-zone-${useId().replaceAll(':', '')}`;

		useImperativeHandle(ref, () => outlineRef.current as HTMLDivElement, []);

		// Both paths and interface references are measured from representative
		// iOS captures of full-green videos, rather than inferred from platform
		// marketing material. Author-specific text and avatars were replaced in
		// the transparent interface images.
		//
		// TikTok: The 1290×2293 video region at y=139 in tiktok-layout.png was
		// mapped to 1080×1920. The path clears the search UI (ending at y=132),
		// the action rail (starting at x=949, y=803), and captions (y=1749).
		//
		// Instagram: The 1290×2550 Reels viewport in reels-layout.png displays a
		// 9:16 video with cover sizing. Mapping it back to 1080×1920 leaves the
		// visible source between x=54 and x=1026. The path clears the top controls
		// (ending at y=212), action rail (starting at x=927, y=1114), and captions
		// (y=1726).
		const safeAreaPath =
			platform === 'tiktok'
				? 'M24 160 H1050 V780 H930 V1715 H24 Z'
				: 'M55 235 H1025 V1090 H900 V1700 H55 Z';

		return (
			<Sequence
				layout="none"
				{...sequenceProps}
				controls={controls}
				name={name ?? '<SocialSafeZones>'}
				outlineRef={outlineRef}
			>
				<div
					ref={outlineRef}
					style={{
						...style,
						height,
						left: 0,
						pointerEvents: 'none',
						position: 'absolute',
						top: 0,
						width,
						zIndex: 2147483647,
					}}
				>
					<svg
						aria-hidden="true"
						height="100%"
						preserveAspectRatio="xMidYMid meet"
						viewBox="0 0 1080 1920"
						width="100%"
					>
						<defs>
							<mask
								height="1920"
								id={maskId}
								maskUnits="userSpaceOnUse"
								width="1080"
								x="0"
								y="0"
							>
								<rect fill="white" height="1920" width="1080" />
								<path d={safeAreaPath} fill="black" />
							</mask>
						</defs>

						<rect
							fill="#ff3158"
							height="1920"
							mask={`url(#${maskId})`}
							opacity={overlayOpacity}
							width="1080"
						/>

						<path
							d={safeAreaPath}
							fill="none"
							stroke="#c8ff3d"
							strokeDasharray="22 16"
							strokeWidth="8"
						/>
					</svg>

					{showInterface ? (
						<Img
							alt=""
							src={
								platform === 'tiktok'
									? 'https://remotion.media/elements/social-safe-zones/tiktok-interface.png'
									: 'https://remotion.media/elements/social-safe-zones/instagram-reels-interface-v3.png'
							}
							style={{
								height: '100%',
								left: 0,
								objectFit: 'contain',
								position: 'absolute',
								top: 0,
								width: '100%',
							}}
						/>
					) : null}
				</div>
			</Sequence>
		);
	},
);

export const SocialSafeZones = Interactive.withSchema({
	Component: SocialSafeZonesInner,
	componentName: '<SocialSafeZones>',
	componentIdentity: null,
	schema: socialSafeZonesSchema,
	supportsEffects: false,
}) as React.FC<SocialSafeZonesProps>;

Accuracy

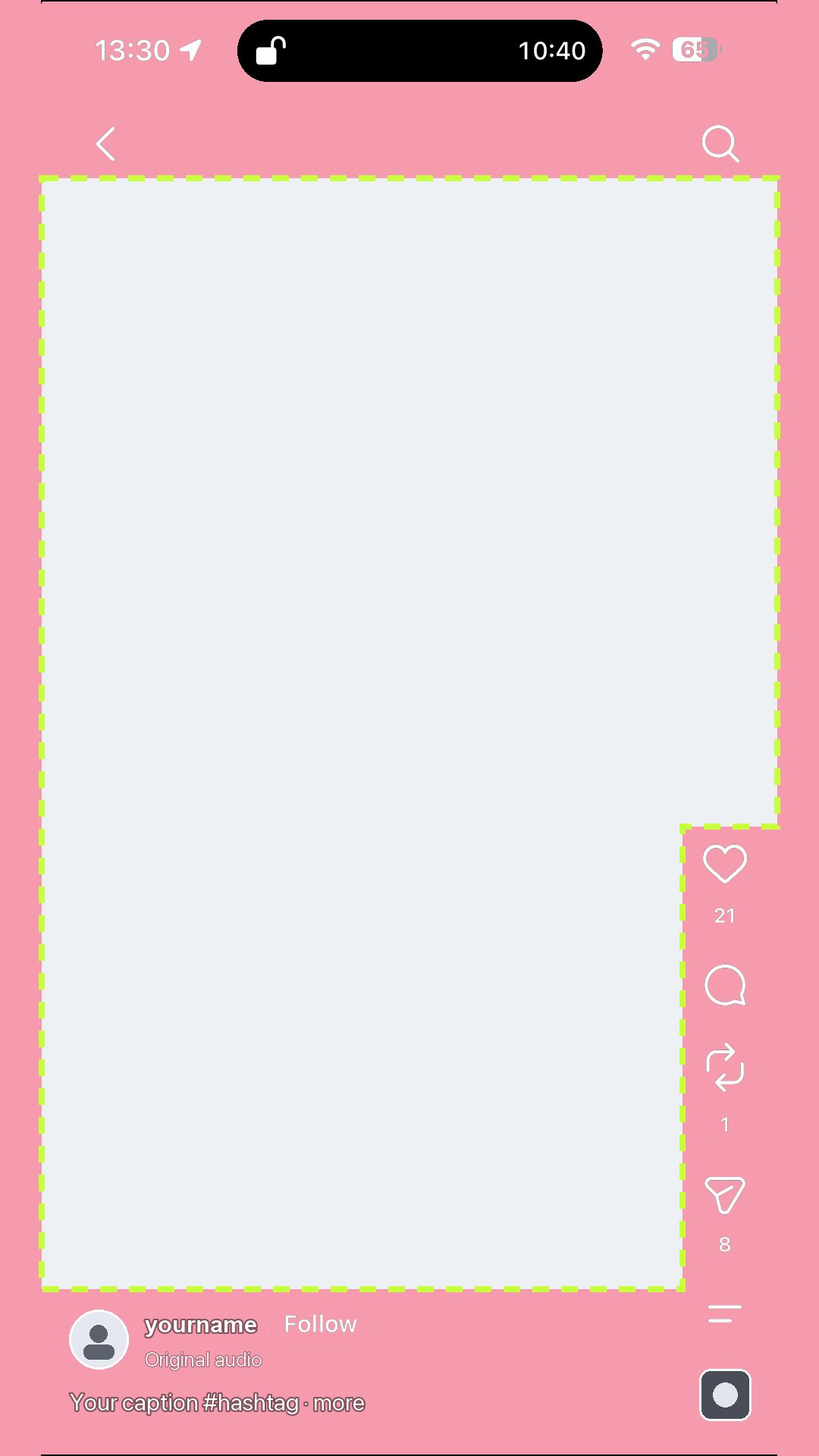

The presets were measured at 9:16 from representative iOS captures of full-green videos in TikTok and Instagram Reels. The interface references are transparent images extracted from those captures, rather than redrawn approximations. Author-specific text and avatars were replaced with generic content. The guide scales to other composition dimensions so it remains visible in previews of any aspect ratio.

Live interfaces can vary by device, app version, locale, account state, caption length, and placement. Treat the clear region as a capture-calibrated reference, not a guarantee from either platform. The captured geometry is exact at 9:16 and scaled at other aspect ratios. The guide is rendered like any other Element, so hide or remove it when it should not appear in the final video.
