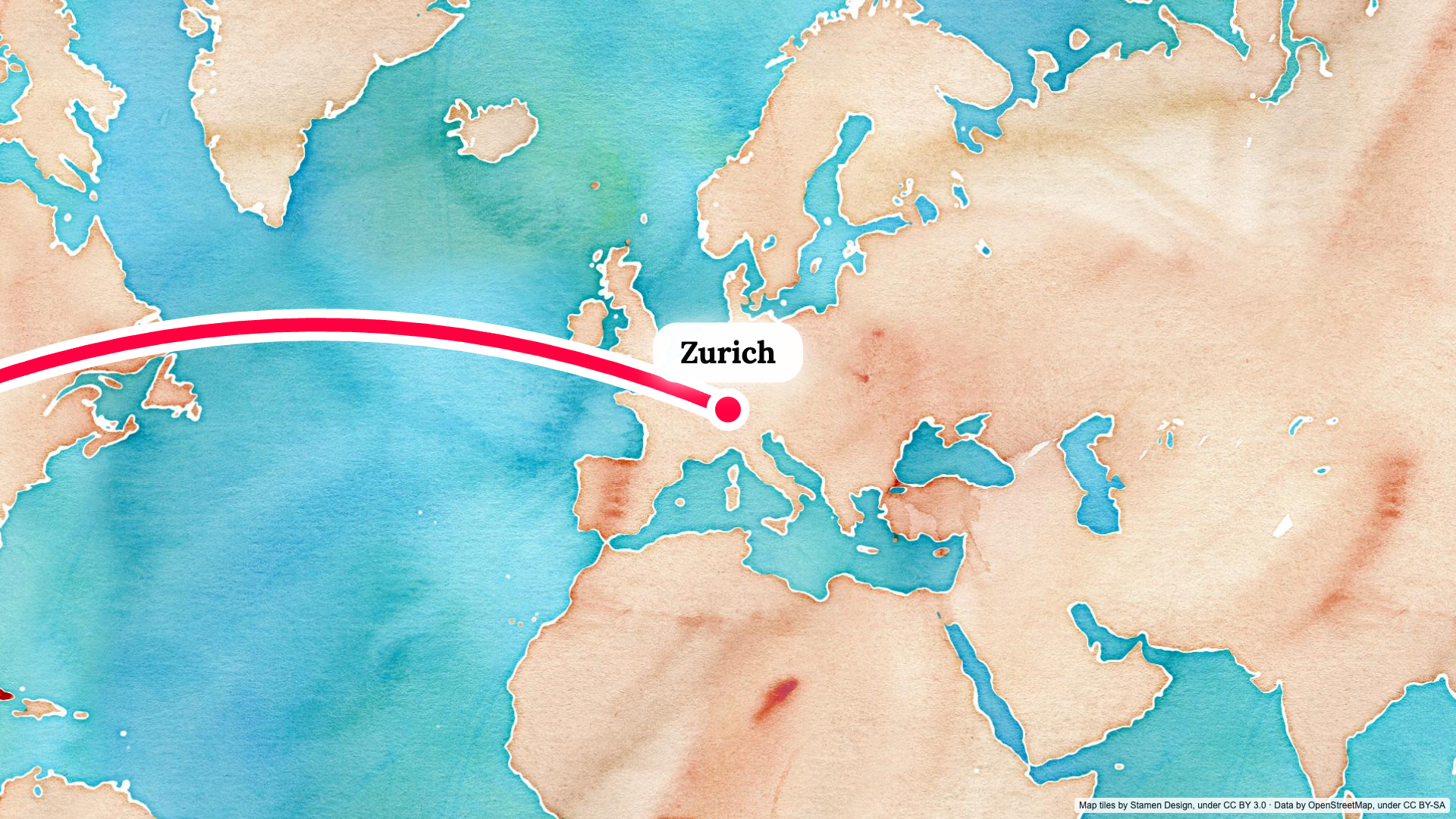

watercolor-map.tsx
import {fontFamily, loadFont} from '@remotion/google-fonts/Lora';
import React, {forwardRef, useImperativeHandle, useRef} from 'react';
import {
Easing,
Img,
Interactive,
Sequence,
interpolate,
spring,
useCurrentFrame,
useVideoConfig,
type InteractiveBaseProps,
type InteractiveTransformProps,
type InteractivitySchema,
type SequenceControls,
} from 'remotion';
loadFont('normal', {
weights: ['700'],
subsets: ['latin'],
});
const TILE_SIZE = 256;
const TILE_BASE_URL =
'https://watercolormaps.collection.cooperhewitt.org/tile/watercolor';
type Coordinates = readonly [longitude: number, latitude: number];
type WatercolorMapProps = InteractiveBaseProps &
InteractiveTransformProps & {
readonly destination?: Coordinates;
readonly destinationLabel?: string;
readonly origin?: Coordinates;
readonly originLabel?: string;
readonly routeColor?: string;
readonly routeWidth?: number;
};
const watercolorMapSchema = {
...Interactive.baseSchema,
origin: {
type: 'array',
item: {type: 'number', step: 0.0001},
default: [-118.2437, 34.0522],
minLength: 2,
maxLength: 2,
newItemDefault: 0,
description: 'Origin [longitude, latitude]',
},
destination: {
type: 'array',
item: {type: 'number', step: 0.0001},
default: [8.5417, 47.3769],
minLength: 2,
maxLength: 2,
newItemDefault: 0,
description: 'Destination [longitude, latitude]',
},
originLabel: {
type: 'text-content',
default: 'Los Angeles',
description: 'Origin label',
},
destinationLabel: {
type: 'text-content',
default: 'Zurich',
description: 'Destination label',
},
routeColor: {
type: 'color',
default: '#ff0041',
description: 'Route color',
},
routeWidth: {
type: 'number',
min: 4,
max: 30,
step: 1,
default: 18,
description: 'Route width',
hiddenFromList: false,
},
...Interactive.transformSchema,
} as const satisfies InteractivitySchema;
const getZoom = (origin: Coordinates, destination: Coordinates) => {
const longitudeDelta =
((((destination[0] - origin[0] + 540) % 360) + 360) % 360) - 180;
const latitudeDelta = destination[1] - origin[1];
const distanceInDegrees = Math.hypot(longitudeDelta, latitudeDelta);
const preferredDistanceInTiles = 1920 / TILE_SIZE;
const degreesPerTile = distanceInDegrees / preferredDistanceInTiles;
let closestZoom = 0;
let closestDifference = Infinity;
for (let zoom = 0; zoom <= 18; zoom++) {
const difference = Math.abs(360 / 2 ** zoom - degreesPerTile);
if (difference < closestDifference) {
closestDifference = difference;
closestZoom = zoom;
}
}
return closestZoom;
};
const projectCoordinates = (coordinates: Coordinates, zoom: number) => {
const worldSize = TILE_SIZE * 2 ** zoom;
const latitude = Math.max(-85.05112, Math.min(85.05112, coordinates[1]));
const latitudeRadians = (latitude * Math.PI) / 180;
return {
x: ((coordinates[0] + 180) / 360) * worldSize,
y:
(0.5 -
Math.log(Math.tan(Math.PI / 4 + latitudeRadians / 2)) / (2 * Math.PI)) *
worldSize,
};
};
const getTiles = ({
centerX,
centerY,
height,
width,
zoom,
}: {
centerX: number;
centerY: number;
height: number;
width: number;
zoom: number;
}) => {
const tileCount = 2 ** zoom;
const viewportLeft = centerX - width / 2;
const viewportTop = centerY - height / 2;
const firstColumn = Math.floor(viewportLeft / TILE_SIZE);
const lastColumn = Math.floor((viewportLeft + width) / TILE_SIZE);
const firstRow = Math.max(0, Math.floor(viewportTop / TILE_SIZE));
const lastRow = Math.min(
tileCount - 1,
Math.floor((viewportTop + height) / TILE_SIZE),
);
const tiles: {
key: string;
left: number;
src: string;
top: number;
}[] = [];
for (let column = firstColumn; column <= lastColumn; column++) {
const wrappedColumn = ((column % tileCount) + tileCount) % tileCount;
for (let row = firstRow; row <= lastRow; row++) {
tiles.push({
key: `${zoom}/${column}/${row}`,
left: column * TILE_SIZE - viewportLeft,
src: `${TILE_BASE_URL}/${zoom}/${wrappedColumn}/${row}.jpg`,
top: row * TILE_SIZE - viewportTop,
});
}
}
return tiles;
};
const WatercolorMapContent: React.FC<{
readonly destination: Coordinates;
readonly destinationLabel: string;
readonly origin: Coordinates;
readonly originLabel: string;
readonly outlineRef: React.RefObject<HTMLDivElement | null>;
readonly routeColor: string;
readonly routeWidth: number;
readonly style: React.CSSProperties | undefined;
}> = ({
destination,
destinationLabel,
origin,
originLabel,
outlineRef,
routeColor,
routeWidth,
style,
}) => {
const frame = useCurrentFrame();
const {fps, height, width} = useVideoConfig();
const zoom = getZoom(origin, destination);
const worldSize = TILE_SIZE * 2 ** zoom;
const projectedOrigin = projectCoordinates(origin, zoom);
const projectedDestination = projectCoordinates(destination, zoom);
let destinationX = projectedDestination.x;
while (destinationX - projectedOrigin.x > worldSize / 2) {
destinationX -= worldSize;
}
while (destinationX - projectedOrigin.x < -worldSize / 2) {
destinationX += worldSize;
}
const travelProgress = interpolate(frame, [40, 130], [0, 1], {
easing: Easing.inOut(Easing.ease),
extrapolateLeft: 'clamp',
extrapolateRight: 'clamp',
});
const centerX = interpolate(
travelProgress,
[0, 1],
[projectedOrigin.x, destinationX],
);
const interpolatedCenterY = interpolate(
travelProgress,
[0, 1],
[projectedOrigin.y, projectedDestination.y],
);
const centerY = Math.max(
height / 2,
Math.min(worldSize - height / 2, interpolatedCenterY),
);
const originX = projectedOrigin.x - centerX + width / 2;
const originY = projectedOrigin.y - centerY + height / 2;
const destinationScreenX = destinationX - centerX + width / 2;
const destinationScreenY = projectedDestination.y - centerY + height / 2;
const routeDistance = Math.hypot(
destinationScreenX - originX,
destinationScreenY - originY,
);
const routeArcHeight = Math.min(400, height * 0.37, routeDistance * 0.35);
const routePath = `M ${originX} ${originY} Q ${(originX + destinationScreenX) / 2} ${(originY + destinationScreenY) / 2 - routeArcHeight} ${destinationScreenX} ${destinationScreenY}`;
const originLabelOpacity =
1 -
spring({
fps,
frame: frame - 40,
config: {damping: 200},
durationInFrames: 20,
});
const destinationMarkerScale = spring({
fps,
frame: frame - 133,
config: {damping: 200},
durationInFrames: 20,
});
const destinationLabelOpacity = spring({
fps,
frame: frame - 130,
config: {damping: 200},
durationInFrames: 20,
});
const tiles = getTiles({centerX, centerY, height, width, zoom});
const originLabelIsAbove =
originY > 120 && (originY > height - 120 || origin[1] > destination[1]);
const destinationLabelIsAbove =
destinationScreenY > 120 &&
(destinationScreenY > height - 120 || destination[1] >= origin[1]);
return (
<div
ref={outlineRef}
style={{
backgroundColor: '#e6ec88',
height,
overflow: 'hidden',
position: 'absolute',
width,
...style,
}}
>
{tiles.map((tile) => (
<Img
key={tile.key}
pauseWhenLoading
showInTimeline={false}
src={tile.src}
style={{
height: TILE_SIZE + 1,
left: tile.left,
maxWidth: 'none',
position: 'absolute',
top: tile.top,
width: TILE_SIZE + 1,
}}
/>
))}
<svg
viewBox={`0 0 ${width} ${height}`}
style={{
height,
inset: 0,
overflow: 'visible',
pointerEvents: 'none',
position: 'absolute',
width,
}}
>
<path
d={routePath}
fill="none"
pathLength={1}
stroke="white"
strokeDasharray={1}
strokeDashoffset={1 - travelProgress}
strokeLinecap="round"
strokeWidth={routeWidth + 24}
/>
<path
d={routePath}
fill="none"
pathLength={1}
stroke={routeColor}
strokeDasharray={1}
strokeDashoffset={1 - travelProgress}
strokeLinecap="round"
strokeWidth={routeWidth}
/>
</svg>
<div
style={{
backgroundColor: routeColor,
border: '12px solid white',
borderRadius: '50%',
boxSizing: 'border-box',
height: 60,
left: originX,
position: 'absolute',
top: originY,
translate: '-50% -50%',
width: 60,
}}
/>
<div
style={{
backgroundColor: routeColor,
border: '12px solid white',
borderRadius: '50%',
boxSizing: 'border-box',
height: 60,
left: destinationScreenX,
position: 'absolute',
scale: destinationMarkerScale,
top: destinationScreenY,
translate: '-50% -50%',
width: 60,
}}
/>
<div
style={{
backgroundColor: 'white',
borderRadius: 32,
boxShadow: '0 0 30px white',
fontFamily,
fontSize: 40,
fontWeight: 700,
left: originX,
opacity: originLabelOpacity,
padding: '14px 36px',
pointerEvents: 'none',
position: 'absolute',
top: originY,
translate: `-50% ${originLabelIsAbove ? '-145%' : '45%'}`,
whiteSpace: 'nowrap',
}}
>
{originLabel}
</div>
<div
style={{
backgroundColor: 'white',
borderRadius: 32,
boxShadow: '0 0 30px white',
fontFamily,
fontSize: 40,
fontWeight: 700,
left: destinationScreenX,
opacity: destinationLabelOpacity,
padding: '14px 36px',
pointerEvents: 'none',
position: 'absolute',
top: destinationScreenY,
translate: `-50% ${destinationLabelIsAbove ? '-145%' : '45%'}`,
whiteSpace: 'nowrap',
}}
>
{destinationLabel}
</div>
<div
style={{
backgroundColor: 'rgba(255, 255, 255, 0.82)',
borderRadius: 4,
bottom: 8,
color: '#182026',
fontFamily: 'sans-serif',
fontSize: 12,
padding: '3px 6px',
position: 'absolute',
right: 8,
}}
>
Map tiles by Stamen Design, under CC BY 3.0 · Data by OpenStreetMap,
under CC BY-SA
</div>
</div>
);
};
const WatercolorMapInner = forwardRef<
HTMLDivElement,
WatercolorMapProps & {readonly controls: SequenceControls | undefined}
>(
(
{
controls,
destination = [8.5417, 47.3769],
destinationLabel = 'Zurich',
name,
origin = [-118.2437, 34.0522],
originLabel = 'Los Angeles',
routeColor = '#ff0041',
routeWidth = 18,
style,
...sequenceProps
},
ref,
) => {
const outlineRef = useRef<HTMLDivElement>(null);
useImperativeHandle(ref, () => outlineRef.current as HTMLDivElement, []);
return (
<Sequence
layout="none"
{...sequenceProps}
controls={controls}
name={name ?? '<WatercolorMap>'}
outlineRef={outlineRef}
>
<WatercolorMapContent
destination={destination}
destinationLabel={destinationLabel}
origin={origin}
originLabel={originLabel}
outlineRef={outlineRef}
routeColor={routeColor}
routeWidth={routeWidth}
style={style}
/>
</Sequence>
);
},
);
const InteractiveWatercolorMap = Interactive.withSchema({
Component: WatercolorMapInner,
componentName: '<WatercolorMap>',
componentIdentity: null,
schema: watercolorMapSchema,
supportsEffects: false,
}) as React.FC<WatercolorMapProps>;
export const WatercolorMap: React.FC<WatercolorMapProps> = (props) => {
return (
<InteractiveWatercolorMap
destination={[8.5417, 47.3769]}
destinationLabel="Zurich"
name="Watercolor map"
origin={[-118.2437, 34.0522]}
originLabel="Los Angeles"
routeColor="#ff0041"
routeWidth={18}
{...props}
/>
);
};
